ALC 161 Version II

AC00001060

Professional rack-mount fast charger (19-inch)  - version II

suitable for up to 16 pcs AA batteries or AAA batteries

  • Description
  • Specifications
  • Product Variants
  • Fast charging of batteries in 2 to 4 hours (depending on charging status)
  • -deltaV cutoff with micro-controlled electronics
  • Separate supervision per rechargeable battery
  • No memory effect when using NiMH batteries
  • Detection of faulty batteries
  • Trickle charging keeps the batteries charged
  • Display of charging status per module
  • Integrated switching power supply 90V to 250V without switchover
  • The charger is supplied with rechargeable batteries (see product variants)
  • 19-inch steel housing 1U high (44mm), ready to be mounted in a rack
Type of Charger: ALC 161 (version II)
Operating voltage / frequency: 90 – 260 VAC / 50-60Hz automatic voltage adjustment
Max. input power: 50W
Type and number of batteries: 16 pcs AA batteries or AAA batteries - individual charging
Charging current max.: 16 x 800mA (AA), 16 x 400mA (AAA) - automatic detection
Charging time max.: AA batteries 2850mAh approx. 240 min, AAA batteries 1000mAh approx. 150 min
Dimensions W, H, D: 483mm, 44mm, 195mm
Weight (excluding batteries): approx. 2.5 kg

Developed and manufactured in Germany
  • ALC 161 / 2850
    AC00001062
    Supplied including 16 pieces AA rechargeable batteries NiMH 2850mAh
  • ALC 161 / 1000
    AC00001063
    Supplied including 16 pieces AAA rechargeable batteries NiMH 1000mAh
  • ALC 161
    AC00001060
    for use with top-quality NiMH rechargeable batteries, supplied without rechargeables

ALC 81

AC00001065



Professional Rackmount Fast Charger (9.5-inch)

suitable for up to 8 pcs AA batteries or AAA batteries - individual charging

  • Description
  • Specifications
  • Fast charging of batteries in 2 to 4 hours
  • -deltaV cutoff with micro-controlled electronics
  • Separate supervision per rechargeable battery
  • No memory effect when using NiMH batteries
  • Detection of faulty batteries
  • Trickle charging keeps the batteries charged
  • Display of charging status per module
  • Integrated switching power supply 90V to 250V without switchover
  • 9.5-inch steel housing 1U high (44mm), can be mounted in a 19-inch rack, individually or two chargers next to each other (assembly parts included)
Type of Charger: ALC 81 (version II)
Operating voltage / frequency: 90 – 240 VAC / 47-63Hz automatic voltage adjustment
Max. input power: 24W
Type and number of batteries: 8 pcs AA batteries (up to max. 3000mAh) or AAA batteries (up to max. 1300mAh) - individual charging
Charging current max.: 8 x 800mA (AA), 8 x 400mA (AAA) - automatic detection
Charging time max.: AA batteries 2850mAh approx. 240 min, AAA batteries 1000mAh approx. 150 min
Safety timer: 360 min
Dimensions W, H, D: 219mm, 42mm, 200mm
Weight (excluding batteries): approx. 2.1 kg

Developed and manufactured in Germany

ALC 89

AC00001000

Professional Rackmount Fast Charger (19-inch)
suitable for up to 8 pieces 9V block rechargeable batteries NiMH

  • Description
  • Specifications
  • Fast charging of batteries in 2 to 4 hours (depending on charging status)
  • -deltaV cutoff with micro-controlled electronics
  • Separate supervision per rechargeable battery
  • No memory effect when using NiMH batteries
  • Detection of faulty batteries
  • Trickle charging keeps the batteries charged
  • Display of charging status per module
  • Integrated switching power supply 90V to 250V without switchover
  • supplied including 8 pieces 9V block rechargeable batteries NiMH 300 mAh
  • 19-inch steel housing 1U high (44mm), ready to be mounted in a rack
Type of Charger: ALC 89
Operating voltage / frequency: 90 – 260 VAC / 50-60Hz automatic voltage adjustment
Max. input power: 35W
Type and number of batteries: 8 pcs 9V block batteries NiMH 300mAh max.
Charging current max.: 8 x 80mA
Charging time max.: 120-240 min
Dimensions W, H, D: 483mm, 44mm, 195mm
Weight (excluding batteries): approx. 2.0 kg

Developed and manufactured in Germany
ALC 89 - AC00001000

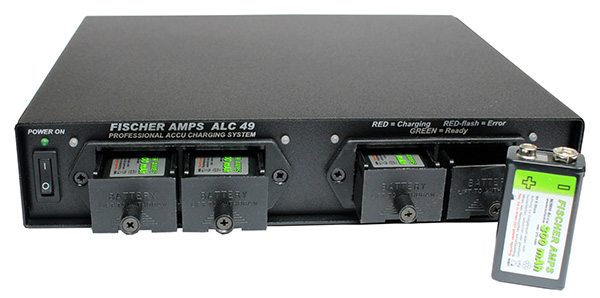

ALC 49

AC00001038

Professional rack-mount fast charger (9.5-inch)

suitable for up to 4 pcs 9 V block rechargeable batteries NiMH

  • Description
  • Specifications
  • Fast charging of batteries in 2 to 4 hours (depending on charging status)
  • -deltaV cutoff with micro-controlled electronics
  • Separate supervision per rechargeable battery
  • No memory effect when using NiMH batteries
  • Detection of faulty batteries
  • Trickle charging keeps the batteries charged
  • Display of charging status per module
  • Integrated switching power supply 90V to 250V without switchover
  • 9.5-inch steel housing 1U high (44mm), can be mounted in a 19-inch rack, individually or two chargers next to each other (assembly parts included)
Type of Charger: ALC 49
Operating voltage / frequency: 90 – 260 VAC / 50-60Hz automatic voltage adjustment
Max. input power: 10W
Type and number of batteries: 4 pcs 9 V block batteries (up to max. 300mAh)
Charging current max.: 4 x 80mA
Charging time max.: 120 - 240 min
Safety timer: 210 min
Dimensions W, H, D: 219mm, 42mm, 200mm
Weight (excluding batteries): approx. 1.8 kg

Developed and manufactured in Germany

Rechargeable Battery AA 2850mAh, NiMH

AC00001058
  • Description
  • Battery Capacity
  • Suitable for ultra fast charging, high capacity
  • eco-friendly NiMH technology (without cadmium)
  • no memory effect (therefore no discharging required)
  • up to 300 - 400 charging/discharging cycles

Rechargeable battery AA NiMH, 2850mAh

AC00001058

Capacity: 2850mAh

Rechargeable Battery AAA, 1000 mAh, NiMH

AC00001044
  • Suitable for ultra fast charging
  • very high capacity
  • eco-friendly NiMH technology (without cadmium)
  • no memory effect (therefore no discharging required)
  • up to 300 - 400 charging/discharging cycles

Rechargeable Battery 9V-Block 300 mAh, NiMH

AC00001019
  • Suitable for ultra fast charging
  • very high capacity
  • eco-friendly NiMH technology (without cadmium)
  • no memory effect (therefore no discharging required)
  • up to 300 - 400 charging/discharging cycles
